In this screen, you can create a new Process Model from an imported Process Archive.
Only users with Process Model Creator authorization can use this function.
|
- Click [New Model from Archive] from the left navigation menu to open this screen.
- Only for users with Process Model Creator authorization.
How to Create a new Process Model from Archive

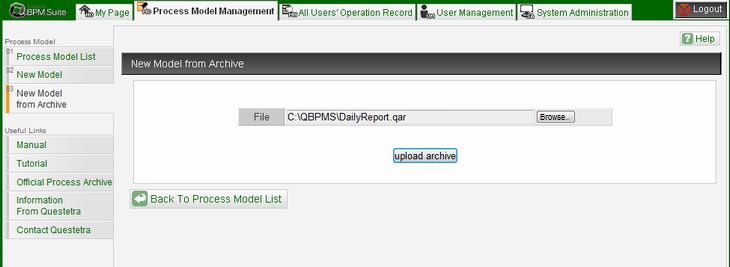

1. Upload Archive
- Click
 and select a Process Archive file (.qar).
- Click
 .

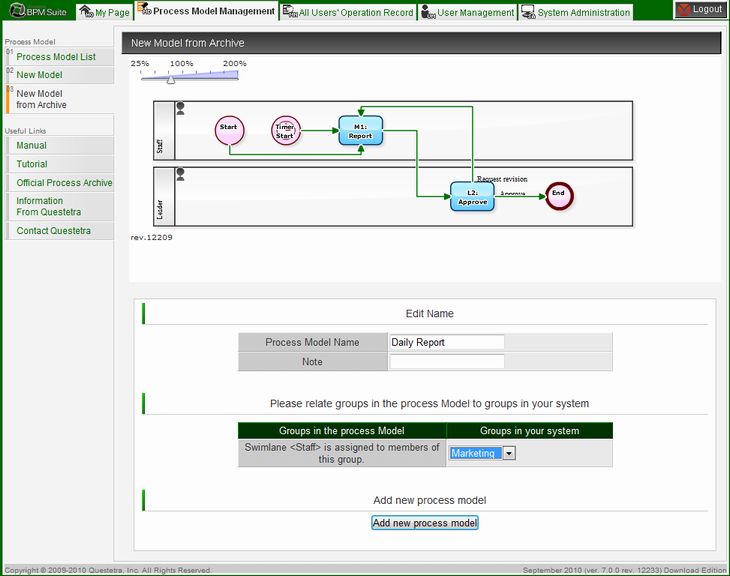

2. Edit the new Process Model
1. Enter or change Process Model information
Item
|
Description |
| Process Model Name |
- Enter Process Model name
- Required
- Up to 64 letters
|
| Category |
- Enter Process Model category
|
| View Priority |
- Select the priority of this model for viewing in the Process Model List
|
| Note |
|
2. Set allocation rules
Item
|
Description |
| Groups in your system |
- Select groups (for group allocation rules in the Process Model).
- The corresponding swimlane is shown on the left.
|
| Users in your system
|
- Select users (for user allocation rules in the Process Model).
- The corresponding swimlane is shown on the left.
|
3. Click  .
- The page will automatically move to the Edit Process Model
page.
- See Process
Modeler on how to create a Process Model in the Edit Process Model
page.
|
