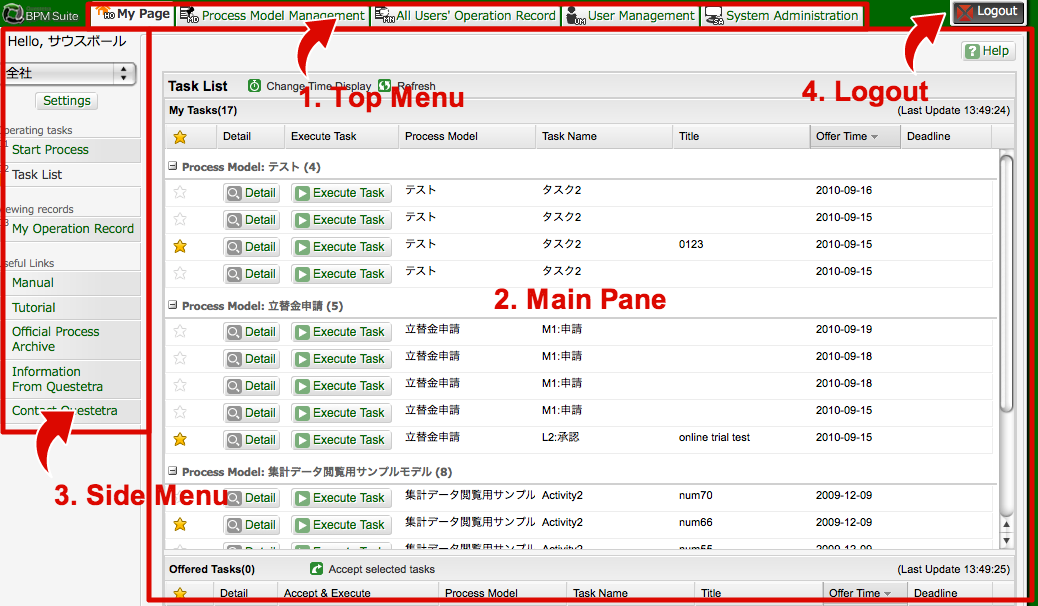

1. Top Menu
- Top Menu.
- The Top Menu is different depending on the User's authorization.
- For information on each page, see Application Manual.
2. Side Menu
-
Sub-menus according to each Top Menu page are displayed.
-
For detailed information, see manual of each Menu.
Useful Links
This menu is shown on all pages.
Manual
|
- Links to Questetra BPM Suite Application Manual
|
Tutorial
|
- Links to Questetra BPM
Suite Tutorial Site
- Users can learn basic operations of the application through a role-playing tutorial.
|
Official Process Archive
|
- Links to Official Process Archives page.
- In this page the user can:
- Download Process Archives.
- Create new Process Models by importing downloaded Process Models.
(How to Import)
|
Information from Questetra
|
- Links to information from Questetra regarding version updates and new features.
- Includes:
- Information for all Questetra BPM Suite users.
- Information for Questetra BPM Suite managers.
|
Contact Questetra
|
- Links to the contact form for Questetra.
|
3. Main Pane and Help
- The Main Pane is where the main content is displayed, according to the selected menu.
- Users can check the breadcrumb trail to see where they are in the application.
- Example: Modeling > Process Model List

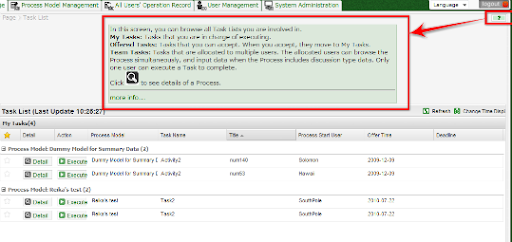

Help
|
|
- Click The question mark on the top right of the page to show/hide the help function.
- Click [more info...] to link to the corresponding application manual page.
|
4. Logout
|
|
Click [Logout] on the top right of the screen to logout of the application.
Clicking this will also disable the Auto Sign in function
If you want to finish with the Auto Sign still enabled, do not use this button. Close the browser directly.
|

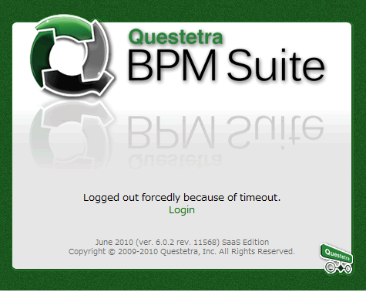

- When the system automatically logs out due to time out, the below message will be shown.
|
