TSV 文字列, カラム重複行の削除
TSV String, Remove Column-Duplicate Lines
カラム要素同士が重複している行を抽出し、削除します。正順モードでは最初の行が残り、逆順モードでは最後の行が残ります。なお “ABC” と “Abc” は、異なるカラム要素として認識されます。(ケースセンシティブ)
Configs for this Auto Step
- StrConfA1
- A1: 入力TSVテキストをセットしてください *#{EL}
- BoolConfB1
- B1: 正順モード⇔逆順モード
- StrConfB2
- B2: 評価対象のカラムIDをセットしてください (例 “0,3”) *#{EL}
- SelectConfC1
- C1: 出力TSVテキストが格納される文字列型データ項目を選択してください (更新)
- SelectConfC2
- C2: 削除行が格納される文字列型データ項目を選択してください (更新)
Script (click to open)
// GraalJS Script (engine type: 2)
//////// START "main()" ////////////////////////////////////////////////////////////////
main();
function main(){
//// == Config Retrieving / 工程コンフィグの参照 ==
const strInput = configs.get ( "StrConfA1" ); /// REQUIRED
if( strInput === "" ){
throw new Error( "\n AutomatedTask ConfigError:" +
" Config {A1: String} is empty \n" );
}
const boolReverseMode = configs.getObject( "BoolConfB1" ); /// TOGGLE
// https://questetra.zendesk.com/hc/ja/articles/360024574471-R2300 "Boolean object"
if( boolReverseMode ){ // true
engine.log( " AutomatedTask Config: Reverse order Search");
}else{
engine.log( " AutomatedTask Config: Forward order Search");
}
const strKeyColIds = configs.get ( "StrConfB2" ); /// REQUIRED
if( strKeyColIds === "" ){
throw new Error( "\n AutomatedTask ConfigError:" +
" Config {B2: KeyColIds} is empty \n" );
}
const regNonNegativeIntCsv = /^[0-9,]*$/; // RegExp
if( ! regNonNegativeIntCsv.test( strKeyColIds ) ){
throw new Error( "\n AutomatedTask ConfigError:" +
" Config {B2: KeyColIds} allows only id numbers and commas \n" );
}
const strPocketOutput = configs.getObject( "SelectConfC1" ); // NotRequired
const strPocketRemoved = configs.getObject( "SelectConfC2" ); // NotRequired
//// == Data Retrieving / ワークフローデータの参照 ==
// (Nothing. Retrieved via Expression Language in Config Retrieving)
//// == Calculating / 演算 ==
const arr2dInput = parseAsRectangular( strInput ); // creates a 2D array.
const arrKeyColIds = strKeyColIds.split( "," );
let arrOutput = [];
let arrRemoved = [];
let setUniqKeys = new Set();
// The Set object lets you store unique values of any type. Require ES2015(ES6)
// https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Set
// https://developer.mozilla.org/ja/docs/Web/JavaScript/Reference/Global_Objects/Set
if ( boolReverseMode ) {
arr2dInput.reverse(); // [ "line0", "line1", "line2" ] ⇒ [ "line2", "line1", "line0" ]
}
for ( let i = 0; i < arr2dInput.length; i++ ) {
let strKey = "";
for ( let j = 0; j < arrKeyColIds.length; j++ ){ // e.g.; "CellA\tCellB\tCellC"
strKey += arr2dInput[i][ arrKeyColIds[j] ];
if ( j !== arrKeyColIds.length - 1 ){
strKey += "\t";
}
}
// engine.log( " AutomatedTask StrKey: " + strKey );
if ( setUniqKeys.has ( strKey ) ) {
// engine.log( " AutomatedTask SetUniqKeys has: " + strKey + " (line: " + i + ")" );
arrRemoved.push ( arr2dInput[i].join( '\t' ) );
} else {
arrOutput.push ( arr2dInput[i].join( '\t' ) );
setUniqKeys.add ( strKey );
}
}
if ( boolReverseMode ) {
if ( arrOutput.length !== 0 ){
arrOutput.reverse(); // [ "line2", "line1", "line0" ] ⇒ [ "line0", "line1", "line2" ]
}
if ( arrRemoved.length !== 0 ){
arrRemoved.reverse();
}
}
let strOutput = arrOutput?.join( '\n' ) ?? "";
let strRemoved = arrRemoved?.join( '\n' ) ?? "";
// https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Operators/Optional_chaining
//// == Data Updating / ワークフローデータへの代入 ==
if ( strPocketOutput !== null ) {
engine.setData ( strPocketOutput, strOutput );
}
if ( strPocketRemoved !== null ) {
engine.setData ( strPocketRemoved, strRemoved );
}
} //////// END "main()" /////////////////////////////////////////////////////////////////
// Parses TSV string as two-dimensional rectangular data matrix and creates a 2D array.
function parseAsRectangular( strTsv ){
const arrTsv = strTsv.split("\n");
/// Get numMinWidth and numMaxWidth (blank lines are excluded)
let numMinWidth = Infinity; // cf. String-Type Max: 1 million
let numMaxWidth = 0;
let numBlanklines = 0;
for( let i = 0; i < arrTsv.length; i++ ){
if( arrTsv[i] === "" ){ // Skip blank lines
numBlanklines += 1;
continue;
}
let arrCells = arrTsv[i].split("\t");
if( numMinWidth > arrCells.length ){ numMinWidth = arrCells.length; }
if( numMaxWidth < arrCells.length ){ numMaxWidth = arrCells.length; }
}
engine.log( " AutomatedTask TsvDataCheck:" +
" MinWidth:" + numMinWidth +
" MaxWidth:" + numMaxWidth +
" Lines:" + arrTsv.length +
" (BlankLines:" + numBlanklines + ")" );
/// Get numMinWidth and numMaxWidth (blank lines are excluded)
let arr2dTsv = [];
for( let i = 0; i < arrTsv.length; i++ ){
if( arrTsv[i] === "" ){ // Skip blank lines
continue;
}
let arrTmp = [];
let arrCells = arrTsv[i].split("\t");
for( let j = 0; j < numMaxWidth; j++ ){
if( j < arrCells.length ){
arrTmp[j] = arrCells[j];
}else{
arrTmp[j] = "";
}
}
arr2dTsv.push( arrTmp );
}
return arr2dTsv;
}
/*
Notes:
- When the process reaches the automated step, the "TSV text" will be automatically evaluated.
- All rows with duplicate specified columns (primary keys) are deleted.
- In Forward mode, the first occurrence of a row is retained.
- And the second and subsequent occurrences are deleted.
- To check for duplicates in the so-called "composite primary key," specify multiple column IDs.
- Setting e.g.; "0,1,2", "0,2"
Appendix-en:
- If the "Output TSV Text" is empty, the string type data item is updated with empty characters.
- If the "delete line" is empty, the string type data item is updated with an empty string.
- In computer science, a set is an abstract data type:
- that can store unique values, without any particular order.
- It is a computer implementation of the mathematical concept of a finite set.
- https://en.wikipedia.org/wiki/Set_(abstract_data_type)
- https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Set
Notes-ja:
- 案件が自動工程に到達した際、「TSVテキスト」が評価されます。
- 指定カラム(主キー)が重複する行が全て削除されます。
- 正順モード(Forward mode)の場合、最初に出現した行が保持され、2回目以降に出現する行は削除されます。
- いわゆる「複合主キー」で重複を確認したい場合、カラムIDを複数指定します。
- 設定例: "0,1,2"、"0,2"
Appendix-ja:
- もし「出力TSVテキスト」が空の場合、文字列型データ項目は、空文字で更新されます。
- もし「削除行」が空の場合、文字列型データ項目は、空文字で更新されます。
- Set とは、コンピュータプログラミングで用いられる抽象データ型の一種。
- 順序のないデータの集まり(有限集合)を表現する抽象データ型。
- 同一のデータは一つしか含まれないことが保証される。
- https://w.wiki/6DCr
- https://developer.mozilla.org/ja/docs/Web/JavaScript/Reference/Global_Objects/Set
*/
Download
- tsv-string-remove-column-duplicate-lines-2023.xml
- 2023-01-10 (C) Questetra, Inc. (MIT License)
(アドオン自動工程のインストールは Professional editionでのみ可能です)
Notes
- 案件が自動工程に到達した際、「TSVテキスト」が評価されます。
- 指定カラム(主キー)が重複する行が全て削除されます。
- 正順モード(Forward mode)の場合、最初に出現した行が保持され、2回目以降に出現する行は削除されます。
- いわゆる「複合主キー」で重複を確認したい場合、カラムIDを複数指定します。
- 設定例: “0,1,2”、”0,2″

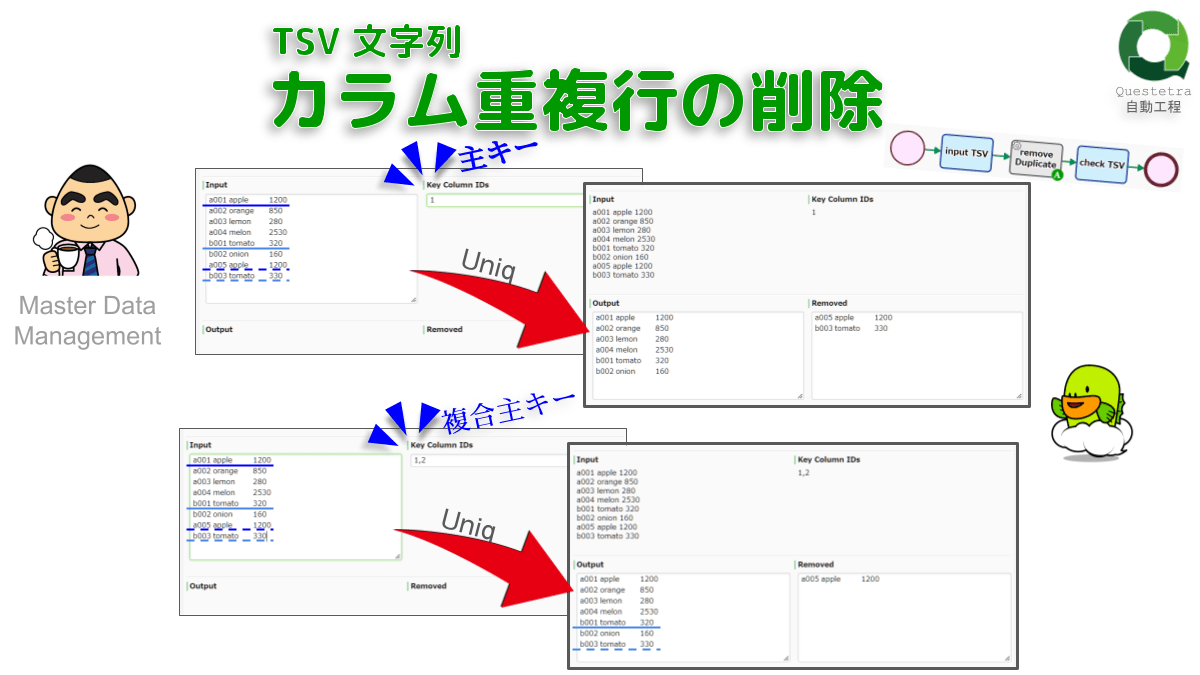

Capture


Appendix
- もし「出力TSVテキスト」が空の場合、文字列型データ項目は、空文字で更新されます。
- もし「削除行」が空の場合、文字列型データ項目は、空文字で更新されます。
- Set とは、コンピュータプログラミングで用いられる抽象データ型の一種。
- 順序のないデータの集まり(有限集合)を表現する抽象データ型。
- 同一のデータは一つしか含まれないことが保証される。
- https://w.wiki/6DCr
- https://developer.mozilla.org/ja/docs/Web/JavaScript/Reference/Global_Objects/Set
