コンバータ: ISO日時文字列 to ワークフロー日時 (Converter: ISO-Datetime-String to Workflow Datetime)
ISO 8601 日時文字列データ(”2021-12-31T20:34:56+09:00″, “2021-12-31T11:34:56.789Z”, 等)を日時型データ(”2021-12-31 12:34″)に変換します。日時型データはワークフロー基盤のタイムゾーンに基づいて評価表示されます。
Configs
- A: ISO日時文字列をセットしてください *#{EL}
- B: 変換された日時が格納される時刻型or文字列型データ項目を選択してください (更新) *
- C: タイムスタンプ(秒)が格納される数値型データ項目を選択してください (更新)
Script (click to open)
// GraalJS Script (engine type: 2)
//////// START "main()" /////////////////////////////////////////////////////////////////
main();
function main(){
//// == Config Retrieving / 工程コンフィグの参照 ==
const strIsoDatetime = configs.get( "StrConfA" ); // required
if( strIsoDatetime === "" ){
throw new Error( "\n AutomatedTask ConfigError:" +
" Config {A: ISO Datetime String} is empty \n" );
}
const timePocketConverted = configs.getObject( "SelectConfB" ); // required
const numPocketTimestamp = configs.getObject( "SelectConfC" );
//// == Data Retrieving / ワークフローデータの参照 ==
// (Nothing. Retrieved via Expression Language in Config Retrieving)
//// == Calculating / 演算 ==
// Parsing of date strings with the Date constructor
let dateUniversal = new Date( strIsoDatetime );
let numMsecUniversal = dateUniversal.getTime();
engine.log( " AutomatedTask: Timestamp: " + numMsecUniversal );
// The getDate() etc returns number according to local time.
let strConverted = dateUniversal.getFullYear() + "-";
if( dateUniversal.getMonth() + 1 < 10 ){
strConverted += "0" + (dateUniversal.getMonth() + 1) + "-";
}else{
strConverted += (dateUniversal.getMonth() + 1) + "-";
}
if( dateUniversal.getDate() < 10 ){
strConverted += "0" + dateUniversal.getDate() + " ";
}else{
strConverted += dateUniversal.getDate() + " ";
}
if( dateUniversal.getHours() < 10 ){
strConverted += "0" + dateUniversal.getHours() + ":";
}else{
strConverted += dateUniversal.getHours() + ":";
}
if( dateUniversal.getMinutes() < 10 ){
strConverted += "0" + dateUniversal.getMinutes() + ":";
}else{
strConverted += dateUniversal.getMinutes() + ":";
}
if( dateUniversal.getSeconds() < 10 ){
strConverted += "0" + dateUniversal.getSeconds() + "";
}else{
strConverted += dateUniversal.getSeconds() + "";
}
engine.log( " AutomatedTask: Workflow Platform offset: " +
(engine.getTimeZoneOffsetInMinutes() /60) );
//// == Data Updating / ワークフローデータへの代入 ==
if( timePocketConverted.matchDataType( "STRING" ) ){
engine.log( " AutomatedTask: Pocket for Converted is STRING type" );
engine.setData( timePocketConverted, strConverted );
}else{
engine.log( " AutomatedTask: Pocket for Converted is DATETIME type" );
engine.setData( timePocketConverted, new java.sql.Timestamp( numMsecUniversal ) );
}
if( numPocketTimestamp !== null ){
engine.setData( numPocketTimestamp, new java.math.BigDecimal( numMsecUniversal /1000 ) );
} // Millisec will exceed the numerical limit of workflow platform
} //////// END "main()" /////////////////////////////////////////////////////////////////
/*
Notes:
- Converts datetime string to datetime data in Workflow Platform.
- YYYY-MM-DDThh:mm:ss±hh:mm
- YYYY-MM-DD hh:mm
- Returns time with considering timezone of Workflow Platform.
- Strings other than the ISO 8601 format may also be parsed.
- Timezone of Workflow Platform: "+09:00(JST)"
- ISO String: "2021-12-31T20:34:56Z"
- return: "2022-01-01 05:34"
- ISO String: "2021-12-31T20:34:56.789+09:00"
- return: "2021-12-31 20:34"
- ISO String: "February 1, 2021 3:27:00 PM PST"
- return: "2021-02-02 08:27"
- Timezone of Workflow Platform: "-08:00(PST)"
- ISO String: "2021-12-31T20:34:56Z"
- return: "2021-12-31 12:34"
- ISO String: "2021-12-31T20:34:56.789+09:00"
- return: "2021-12-31 03:34"
Notes-ja:
- 時刻を表す文字列を、ワークフロー基盤の時刻データに変換します。
- YYYY-MM-DDThh:mm:ss±hh:mm
- YYYY-MM-DD hh:mm
- ISO 8601 フォーマット以外の文字列も解析可能な場合があります。
- 格納される時刻は、ワークフロー基盤のタイムゾーンに従います。
- ワークフロー基盤が「+09:00(JST)」で運用されている場合
- ISO String: 2021-12-31T20:34:56Z
- return: 2022-01-01 05:34
- ISO String: 2021-12-31T20:34:56.789+09:00
- return: 2021-12-31 20:34
- ISO String: "February 1, 2021 3:27:00 PM PST"
- return: "2021-02-02 08:27"
- ワークフロー基盤が「-08:00(PST)」で運用されている場合
- ISO String: "2021-12-31T20:34:56Z"
- return: "2021-12-31 12:34"
- ISO String: "2021-12-31T20:34:56.789+09:00"
- return: "2021-12-31 03:34"
*/
/*
APPENDIX
- Wikipedia "ISO 8601"
- https://en.wikipedia.org/wiki/ISO_8601
- Parsing depends on Javascript Date() constructor (Date.parse, they are equivalent)
- The timestamp obtained by this Addon is Unix epoch.
- Seconds since 1 January 1970 UTC
- Not the same as the ECMAScript epoch (elapsed Milliseconds), value of 1/1000
APPENDIX-ja
- ウィキペディア "ISO 8601"
- https://ja.wikipedia.org/wiki/ISO_8601
- 文字列解析は、Javascript Date() コンストラクタ(Date.parse と等価)に依存します。
- このAddonによって取得されるタイムスタンプは Unix epoch ("経過秒数")です。
- 協定世界時 (UTC) の1970年1月1日からの経過秒数
- ECMAScript epoch("経過ミリ秒数")の1000分の1となります
*/
Download
2021-03-01 (C) Questetra, Inc. (MIT License)
https://support.questetra.com/ja/addons/converter-iso-datetime-string-to-workflow-datetime/
Addonファイルのインポートは Professional でのみご利用いただけます
Notes
- 時刻を表す文字列を、ワークフロー基盤の時刻データに変換します。
- YYYY-MM-DDThh:mm:ss±hh:mm
- YYYY-MM-DD hh:mm
- ISO 8601 フォーマット以外の文字列も解析可能な場合があります。
- 格納される時刻は、ワークフロー基盤のタイムゾーンに従います。
- ワークフロー基盤が「+09:00(JST)」で運用されている場合
- ISO String: 2021-12-31T20:34:56Z
- ISO String: 2021-12-31T20:34:56.789+09:00
- ISO String: “February 1, 2021 3:27:00 PM PST”
- return: “2021-02-02 08:27”
- ワークフロー基盤が「-08:00(PST)」で運用されている場合
- ISO String: “2021-12-31T20:34:56Z”
- return: “2021-12-31 12:34”
- ISO String: “2021-12-31T20:34:56.789+09:00”
- return: “2021-12-31 03:34”

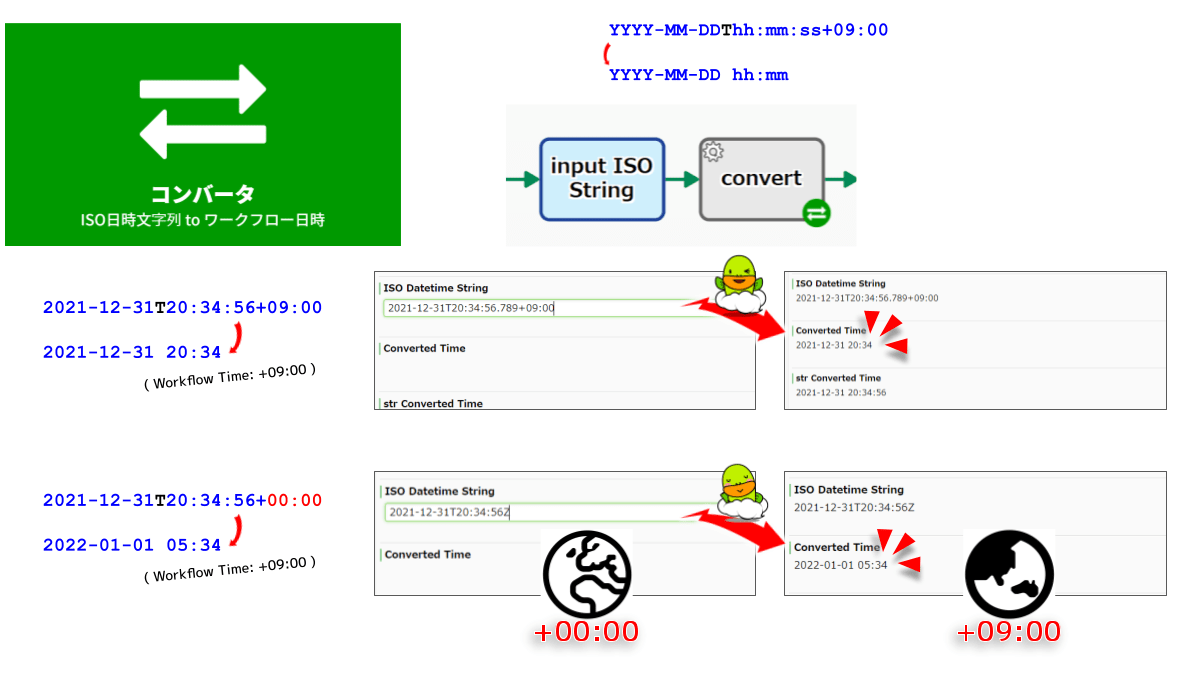

Capture
Appendix
- ウィキペディア “ISO 8601”
- 文字列解析は、Javascript Date() コンストラクタ(Date.parse と等価)に依存します。
- このAddonによって取得されるタイムスタンプは Unix epoch (”経過秒数”)です。
- 協定世界時 (UTC) の1970年1月1日からの経過秒数
- ECMAScript epoch(”経過ミリ秒数”)の1000分の1となります
